Multi-Lumen PTFE Tubing Solutions for Medical Devices
Precision-Engineered PTFE Multi-Lumen Tubing for Advanced Medical Applications
As medical devices continue to become smaller, more precise, and more multifunctional, the demand for specialized medical tubing is increasing. In minimally invasive procedures, multiple functions often need to be integrated into a limited space. Conventional single-lumen tubing may not provide enough independent channels for guidewire movement, fluid delivery, gas transmission, and instrument control.
Multi-lumen ptfe tubing offers a practical solution by integrating multiple independent channels into one compact tube. With excellent chemical resistance, low friction, thermal stability, and dimensional stability, ptfe is suitable for medical device components that require reliable internal passageways and precise channel separation.
Zetai specializes in the development and manufacturing of customized ptfe multi-lumen tubing for medical device applications. Based on customer drawings, samples, and technical requirements, zetai can customize lumen quantity, lumen diameter, outer diameter, wall thickness, and cross-sectional geometry to meet different medical device designs.
Whether used in endoscopic instruments, ERCP devices, laparoscopic equipment, or customized catheter systems, zetai ptfe multi-lumen tubing helps medical device manufacturers integrate multiple functions into a compact structure.
What Is Multi-Lumen PTFE Tubing?

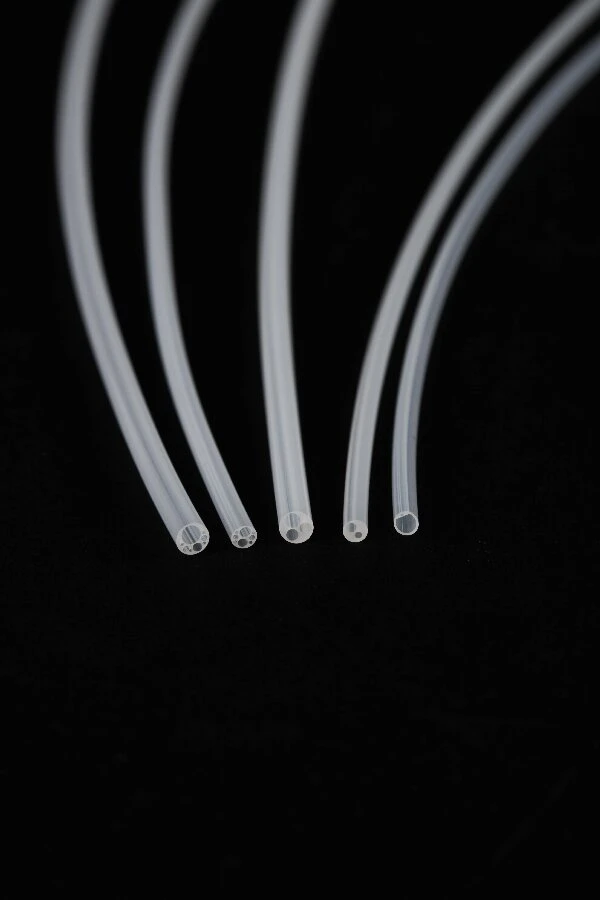

Multi-lumen ptfe tubing is a precision-extruded fluoropolymer tube containing two or more independent internal channels within a single outer profile.
Unlike conventional round ptfe tubing, which has only one central passage, multi-lumen tubing features multiple channels arranged according to the functional requirements of the medical device.
Each lumen can perform a different function, such as:
1.Guidewire passage
2. Fluid injection and delivery
3. Gas transmission
4.Irrigation and drainage
5. Control-wire movement
6. Sensor or instrument positioning
The number, size, and arrangement of the lumens can be customized to suit the internal structure of different medical instruments.

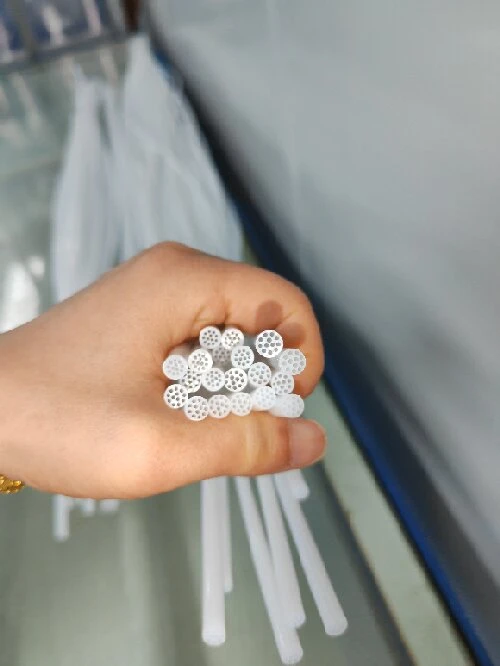

Zetai manufactures customized ptfe multi-lumen tubing, including 2-lumen, 3-lumen, 8-lumen, and 12-lumen configurations. Different lumen arrangements can be developed according to customer drawings and application requirements.
What Medical Devices Use Multi-Lumen PTFE Tubing?
Multi-lumen ptfe tubing is commonly considered for medical devices that require multiple independent working channels within a limited space.
1.1 Endoscopic Medical Devices
Endoscopic instruments require several internal channels to support different functions during examination and minimally invasive procedures.
For example, an endoscopic system may need separate channels for guidewire passage, fluid injection, irrigation, and instrument operation.
Ptfe multi-lumen tubing can integrate these functional pathways into one compact structure.
Problems it helps address:
Limited internal space in small-diameter endoscopic instruments.
Interference between different fluid or instrument pathways.
Friction during guidewire or accessory movement.
Requirements for precise lumen positioning.
Why choose ptfe?
Ptfe has a naturally low-friction surface that supports smooth guidewire movement. Its chemical resistance also makes it suitable for applications involving contact with different process fluids, subject to material-grade and device compatibility requirements.

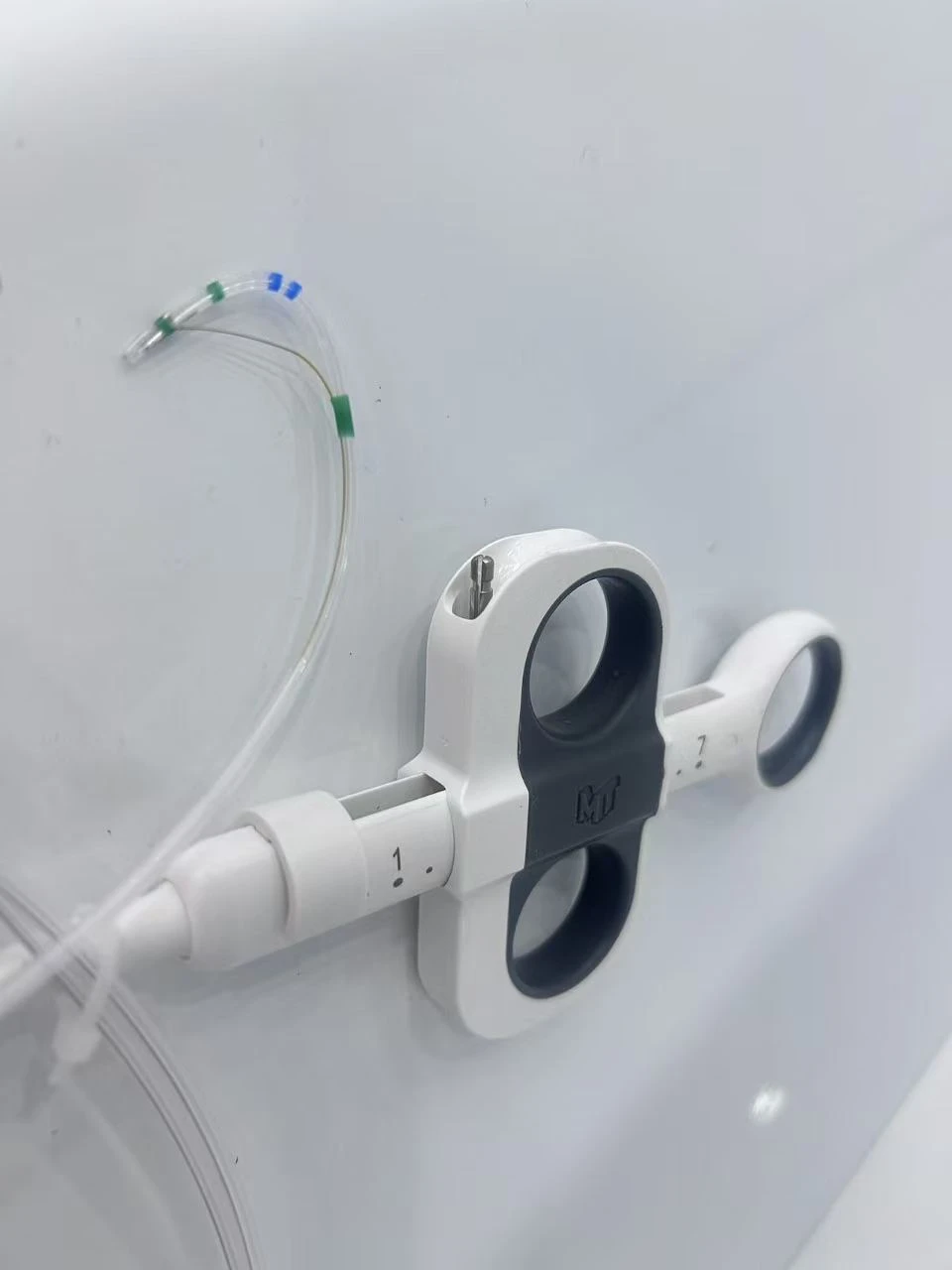

1.2 ERCP and Biliary Endoscopy Devices
ERCP (Endoscopic Retrograde Cholangiopancreatography) instruments require precise internal channel structures to support guidewire operation, fluid injection, and other procedural functions.
Multi-lumen tubing can provide independent pathways within a small external diameter.

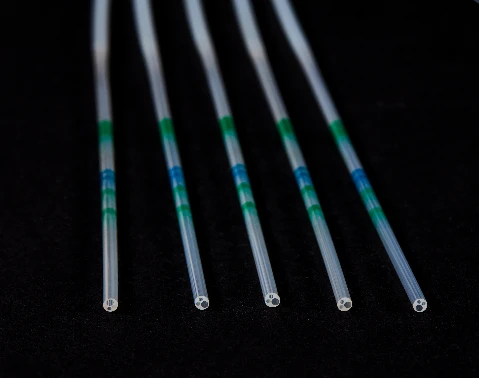

For example, a customized three-lumen ptfe tube can be designed for different functions:
Guidewire channel: Provides a dedicated pathway for guidewire movement.
Cutting-wire channel: Accommodates the control or cutting-wire assembly.
Fluid-injection channel: Provides a separate pathway for fluid delivery.
Problems it helps address:
Insufficient space for multiple functional channels.
Uneven lumen dimensions that affect component assembly.
Internal channel deformation during device manufacturing.
Difficulties maintaining consistent positioning between channels.
Zetai can customize the lumen configuration, inner diameter, outer diameter, and wall thickness according to ERCP device drawings and sample requirements.

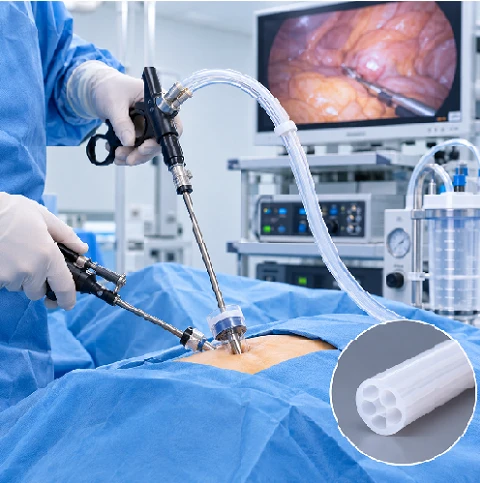

1.3 Laparoscopic Surgical Instruments
Laparoscopic instruments are designed for minimally invasive surgical procedures and often incorporate multiple internal functional pathways.
Depending on the instrument design, these pathways may be used for gas delivery, fluid circulation, irrigation, drainage, or mechanical control.
Ptfe multi-lumen tubing helps integrate multiple passages into a compact internal component.
Application advantages:
Multiple functional channels within one tube.
Reduced need for separate internal tubing components.
Chemical resistance against compatible cleaning and process fluids.
Low-friction surfaces for moving internal components.
Flexible design options for customized instrument structures.

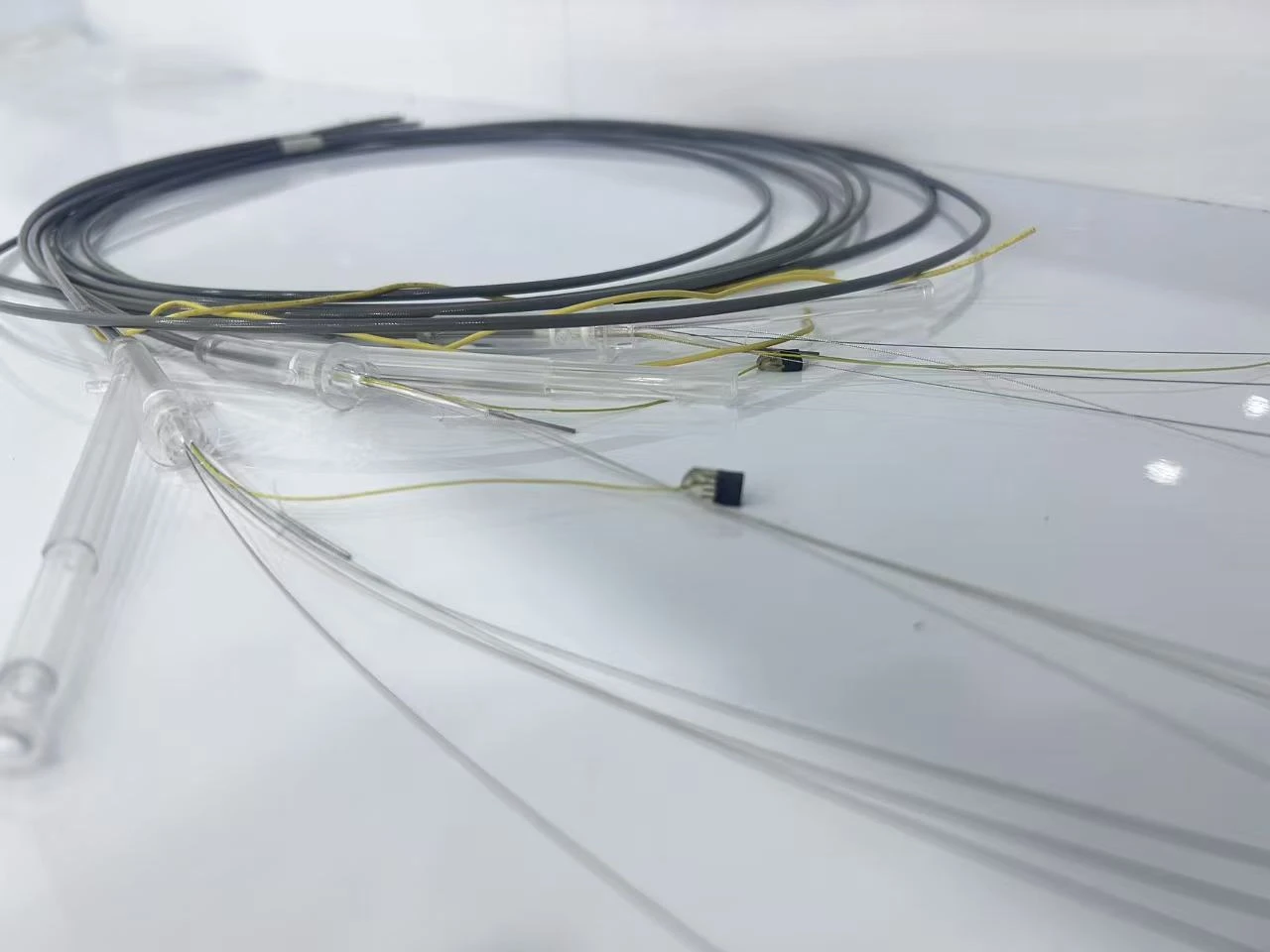

1.4 Interventional Catheter Systems
Interventional catheters are widely used in cardiovascular, neurological, and other minimally invasive medical procedures.
Their internal structures may need to accommodate guidewires, control wires, fluid pathways, or sensor-related components.
Ptfe multi-lumen tubing can be used as an internal catheter component where low friction, small dimensions, and accurate lumen positioning are required.
Problems it helps address:
Restricted internal space in small-diameter catheter designs.
Resistance during guidewire movement.
Requirements for multiple independent functional channels.
Dimensional variations affecting catheter assembly.
Its low coefficient of friction supports smoother movement of guidewires and other compatible components through the designated channels.
1.5 Customized Medical Fluid Delivery Systems
Some medical devices require separate pathways for delivering different fluids or gases.
Multi-lumen ptfe tubing can provide isolated channels within one compact tube, helping reduce the number of individual tubing components.
Potential applications include:
Medical fluid delivery assemblies.
Irrigation and drainage systems.
Diagnostic instrument tubing.
Customized medical access devices.
Laboratory and analytical medical equipment.
The chemical compatibility of ptfe makes it a candidate for applications involving different fluids. The actual suitability must be confirmed according to the fluid composition, operating conditions, and medical device requirements.
Zetai Manufacturing Process
Drawing and Sample Evaluation: Review customer drawings, samples, lumen arrangements, and dimensional requirements.
Raw Material Selection: Select suitable ptfe material according to the intended application and required material documentation.
Extrusion Process Development: Develop the extrusion process based on the tube profile, lumen quantity, and dimensional requirements.
Precision Extrusion: Manufacture the multi-lumen tubing while controlling the external profile and internal channel structure.
Dimensional Inspection: Inspect outer diameter, lumen dimensions, wall thickness, and cross-sectional consistency according to the agreed specifications.
Cutting and Packaging: Cut the tubing to the required length and package it according to customer requirements.
